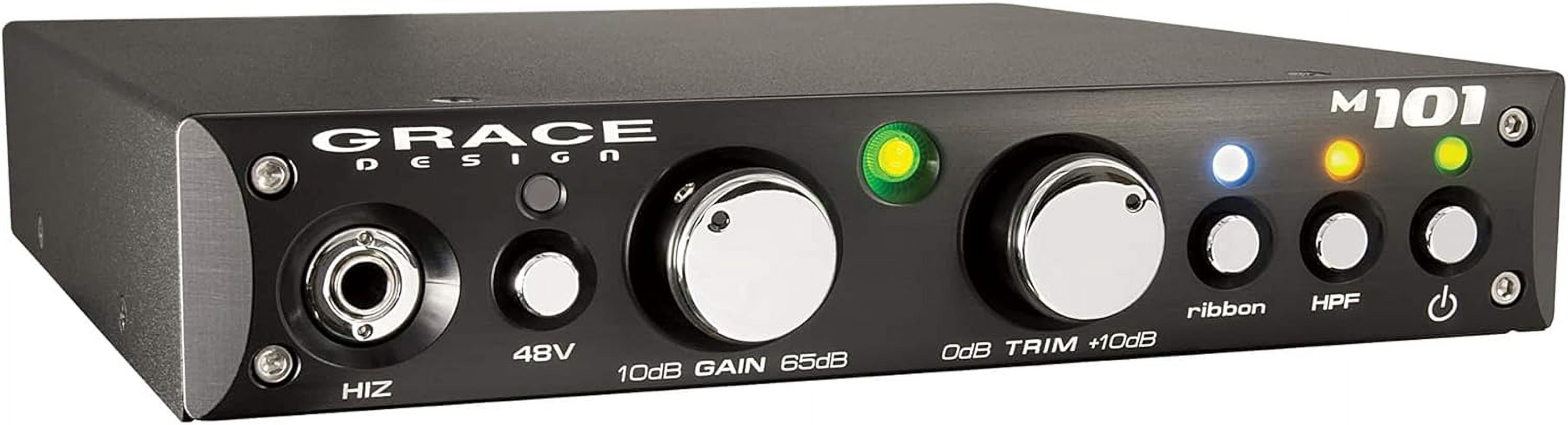

Grace Design M101 Microphone Preamp

<p>In 2000, the Grace Design model 101 microphone preamp helped fuel a revolution. When people took professional recording into their own hands, it was there with all of the quality and performance of a high-end mic preamplifier, but with a price that made it available to the masses. Eight years later, and the cause moves forward with the newly redesigned m101 preamp.<br><br>Maintaining Grace Design pedigree throughout, the m101 employs balanced, transformerless, transimpedance circuit topology. With incredible bandwidth and headroom, the m101 is natural, musical and detailed, allowing engineers and musicians to consistently record vibrant, amazing tracks.<br><br>The m101 is equipped with a redesigned universal switching power supply that's dead quiet and accepts input voltages from 100 to 240V AC. The front panel is a tough black anodized/laser etched black, which ensures legibility and usability in varying light conditions. And all preamp functions have a dedicated indicator LED, including the 48V phantom power and HPF switch.<br><br>Built in as standard is Grace's unique Ribbon Mic Mode, which bypasses the input decoupling capacitors, raises the input impedance from 8.1kÎ to 20kÎ, and defeats the 48V phantom power, preventing damage to delicate ribbon mic elements. Ribbon mics, you're welcome.<br><br>The gain range is 10-75dB, including the additional +10dB of gain available with the output trim control. This provides ample gain for use of any type of microphone in any recording situation. The gain control is a precision gold-plated, 12-position switch, and the circuit path is built with 0.5% metal film resistors.<br><br>Included is a HI-Z input on the front panel. Rear panel I/O options include both balanced TRS and unbalanced TS 1/4" outputs, along with the standard XLR balanced out and XLR microphone in.<br><br>Equally at home amplifying a vintage condenser mic or a plugged-in acoustic guitar, the m101 delivers the kind of high fidelity performance previously available only to big budget recording studios and Grammy winning musicians. Add it all up while considering that the price is unmatched and the picture becomes pretty clear - the m101 is one little hot rod piece of pro audio gear for everyone from home recording enthusiast to top professional.<br><br><strong>Note:</strong> For a truly outstanding sound and value, we suggest using the Grace m1011 with the CAD e300 condenser mic (see (#271261) for amazingly clear and detailed, yet warm-sounding vocals.</p>

• Fast and musical transimpedance architecture
  Updated audio path with 0.5% precision metal film resistors
  New 12 position gold-plated rotary gain switch
  High performance output line driver amplifier and HPF amplifier
  Ribbon mic mode (also great for dynamic mics)- Relay bypass of phantom power decoupling capacitors, increased input impedance, and 48V lockout
  Wider 10-75dB gain range
  Enhanced RFI interference suppression

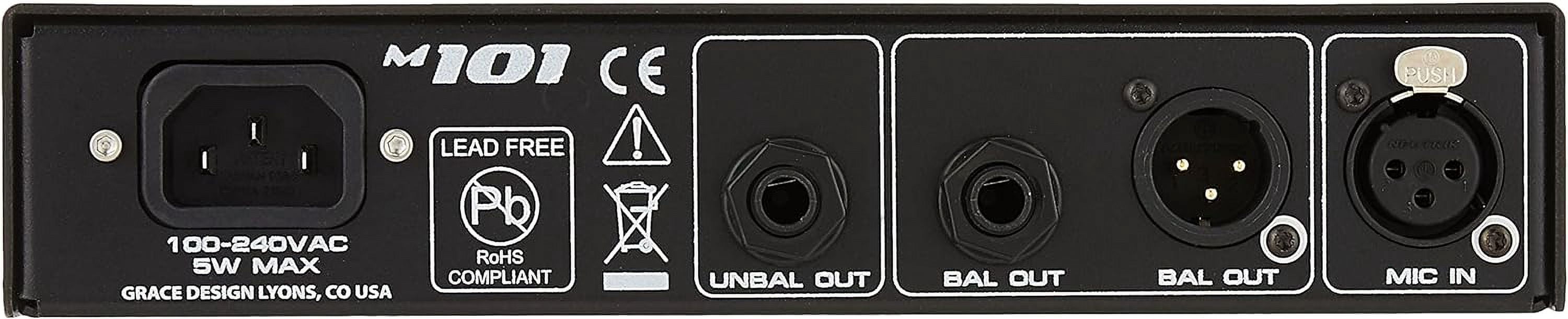

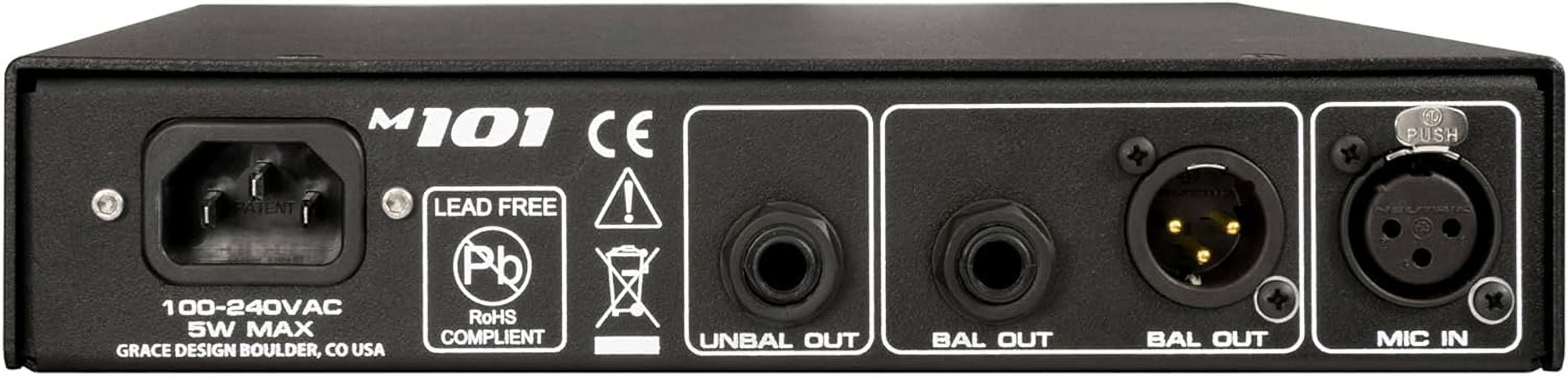

  Three output connectors: XLR balanced, TRS balanced and 1/4" unbalanced
  Bombproof laser-etched black anodized front panel
  Sealed gold contact relay for Hi-Z input switching
  Built in power supply / no wall-wart

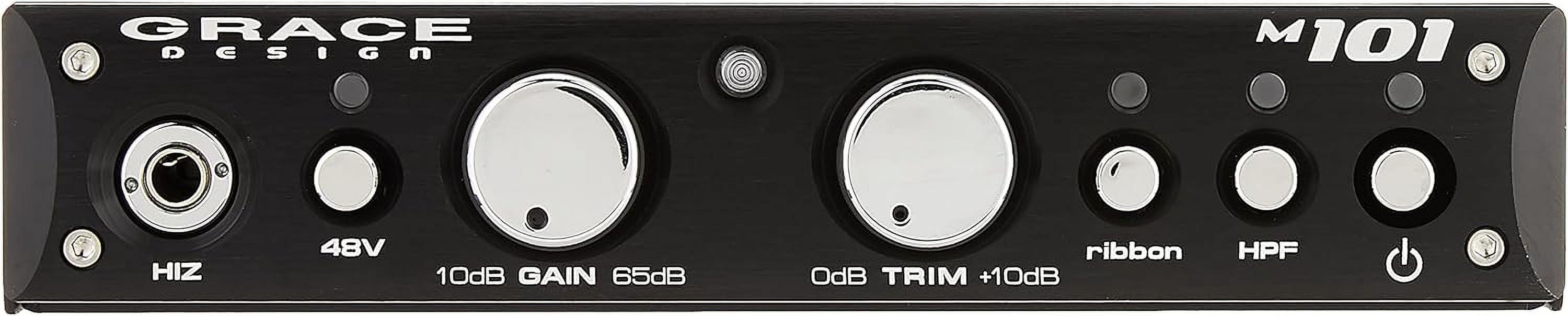

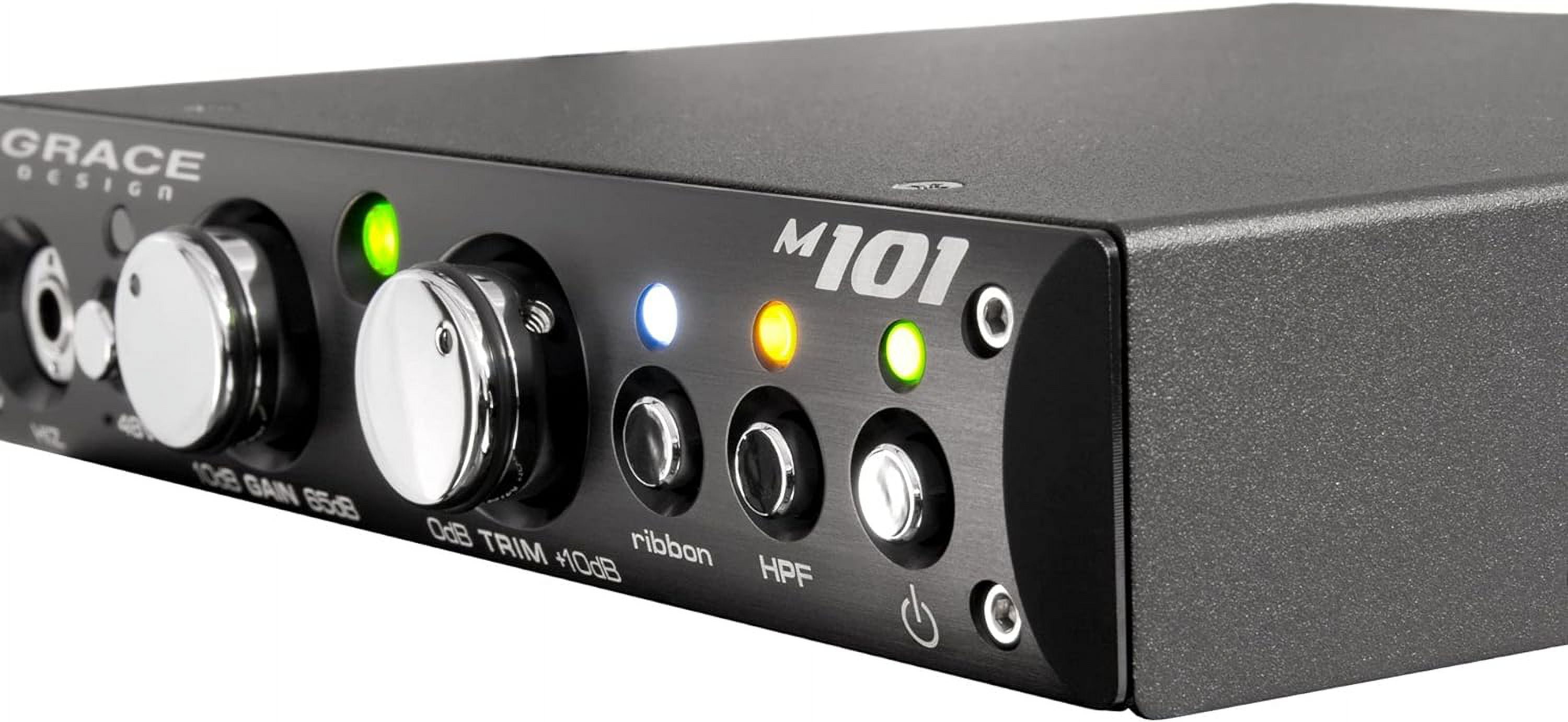

  Led indicators for +48V, Ribbon mode, and HPF
  Five year warranty on parts and labor
  Made in the USA
